Bulkhead Attenuator

Bulkhead-Type Fixed Value Attenuator

We offer air-gap Bulkhead-type Fixed Value Attenuators suitable for 850nm, 1310nm, or 1550nm wavelengths. These are available in FC (Square Type), SC (Flange Type), and ST (Thread Type) connector types.

Features

  • High attenuation and environmental stability
  • Easy installation and well-packaged

Applications

  • Telecommunication Network
  • CATV Network
  • Data Communication
  • Instrumentation
  • Local Area Network (LAN)
 Bulkhead Attenuator 1
Bulkhead Attenuator 2
Bulkhead Attenuator 3

General Specifications

Parameter Specification
Attenuation Value (dB) 1 - 25
Operating Wavelength (nm) 850 / 1310 / 1550
Insertion Loss ±10%
Operating Temperature Range -40°C to +75°C

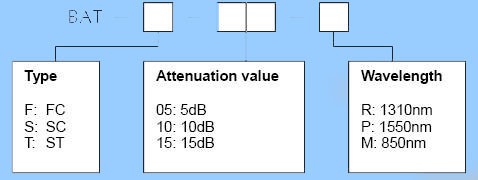

Ordering Information

Ordering Information
