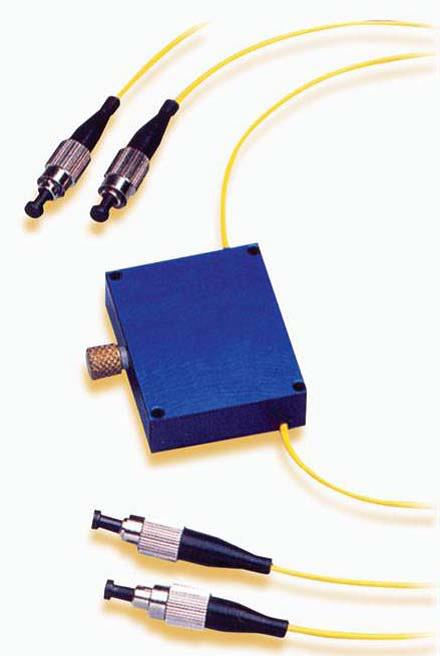

Manual Variable Optical Attenuator
By turning the high-precision screw, attenuation can be set from 0 dB to 30 dB. Its compact design is excellent for panel mounting. Specific connector types can be built on each end.
Specifications:
| Parameter | Value |
|---|---|
| Connector Type | SC, FC, ST, MU, LC |
| Attenuator Variable Range | 0 ~ 30 dB (@1310nm & 1550nm) |
| Return Loss |
UPC: >55 dB APC: >65 dB |
| Resolution | 0.5 dB |
| Operating Temperature | -15°C to 60°C |
| Storage Temperature | -40°C to 70°C |

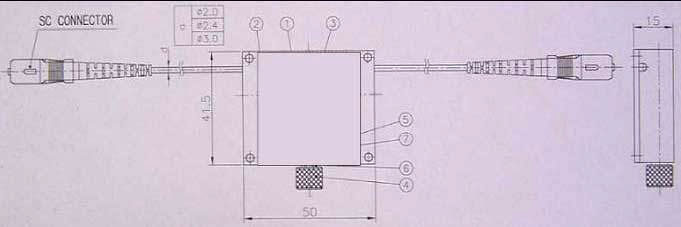

Technical Drawing:
- Body
- Cover
- Guide Pin
- Bolt
- Nut
- Washer
- Washer

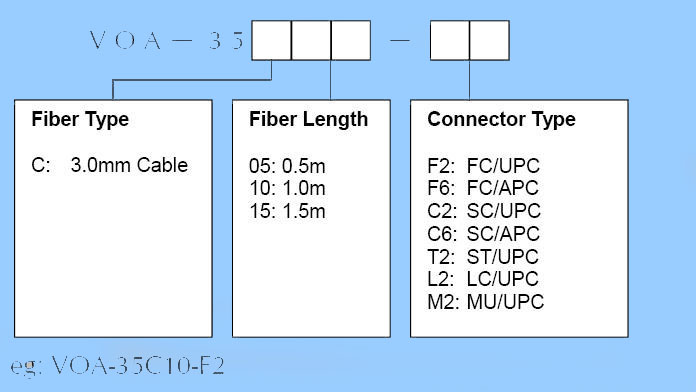

Ordering Information:
