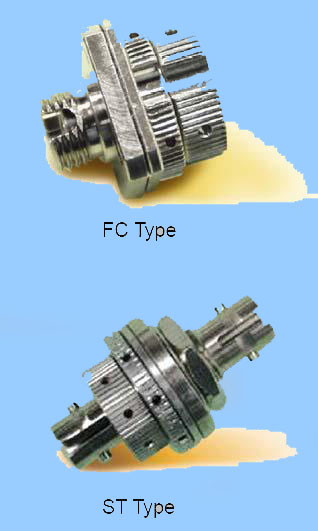

Bulkhead Type Variable Attenuator
The Bulkhead-type variable attenuator can be installed at distribution panels or connecting two patch cords to become an in-line attenuator application. By fine tuning the air gap width, the user can easily adjust the attenuation value by hand when using in conjunction with a power meter.
Features:
- Easy to adjust by hand
- Locking feature
Applications:
- Distribution Panels
- In-line Attenuator
Specifications :
| Model | BVAT-ST | BVAT-FC | BVAT-FA | |
|---|---|---|---|---|
| Items | ||||
| Attenuation Range (dB) | 15 | 20 | 20 | |
Material
|
Bronze Nickel plated Brass |
Ceramic Nickel plated Brass |
Ceramic Nickel plated Brass |
Ordering Information :
| Part # | Description |
|---|---|
| BVAT-FC | Bulkhead-type Optical Variable FC/UPC SM Attenuator (0-20dB) |
| BVAT-FA | Bulkhead-type Optical Variable FC/APC SM Attenuator (0-20dB) |
| BVAT-ST | Bulkhead-type Optical Variable ST MM Attenuator (0-15dB) |
