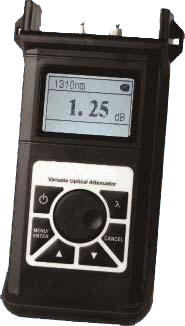

Optical Variable Attenuator JW3303

JW3303 handhold optical variable attenuator is used for continuously variable optical signal attenuation. As the attenuator is used in the laser system for the on-line testing, therefore, JW3303 can be used in the digital system of communication devices (such as: PHD, SDH) and also in the system of adopting analog modulation (CATV)

Main Features:

stepwise attenuating by circumgyrated
dial: attenuating step 0.05dB
Provide with the function of displaying
dB and dBm attenuating value
10 minutes Auto-off function can be
activate and deactivate with keypad
operation.
After off the instruments, the system will
have the memorizing of the
attenuating value and the attenuating
step, in order to restore the system
back to the previous shut down state
when open the instruments next time
Portable, rugged, lightweight; Easy to
use.

Applications:

Telecom Maintenance
CATV Maintenance
Comprehensive cable construction system
Optical instruments research and development
Optical communication education and lab testing
Other optical project

Specifications:

TYPE	JW3303
Attenuating Wavelength Range	1260~1650nm
Optical Connector	FC/PC
Calibrated Wavelengths	1310/1490/1550/1625nm
Measurement Range	2.5~65dB
Linearity	+/-0.5dB
Repeating	+/-0.2dB
Attenuating Accuracy	+/-0.8dB
Return Loss at Input / Output	>35dB (typical value 40dB)
Max Input	+20dBm
Displaying Type	Lattice 128*64 black and white, white back ground light
Rechargeable Batteries	7.4V
Power Supply Adaptor	7~8.5V
Operation Temperature	0~40C
Storage Temperature	-10~60C
Humidity	0~85% (non-condensation)
Dimensions	210x115x55
Weight	450g
Fibre Model	9/125um SM
Resolution	0.05dBm
Minimize Insertion Loss	<2.5dB

Standard Packages:

MODEL	INCLUDES
JW3303	JW3303 Main Body, Protective Rubber Boot, Rechargeable battery, Power Supply Adaptor, Instruction Manual and Cotton Swabs and Rigid hard carrying case.
