GZK digital obstruction lamp |
|

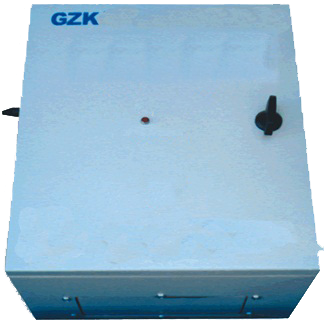

GZK digital obstruction lamp centralized control cabinet is the auxiliary product of the GZ series long-life. The control cabinets of this series can operate 2-20 aviation obstruction lamps to flash synchronously and are mainly adopted by places with much power grid jamming. It utilizes single-chip computer as the core component which operates in a stable and reliable way through preset software according to the digital requirements. |
 |
Main technical
parameters
| working voltage | AC220v |
| output volume | 2000VA |
| Sunbeam switch sensitivity | 200LX （ infinitely adjustable ） |
| Flash period | 20 times/min （ 31 types, adjustable ） |
| functioning environment | -40℃～+70℃ |
| installation ; | wall hanging |
| normal insulation voltage
intensity |
2000V50Hz 、 1mA 、 1min without
spark-through 、 arc-over phenomenon |
| size | 400mmX300mmX200 |
| net lamp weight | 6Kg |
