GTJA208-1
Dome Fiber Optical
Splice Closure
Product Description

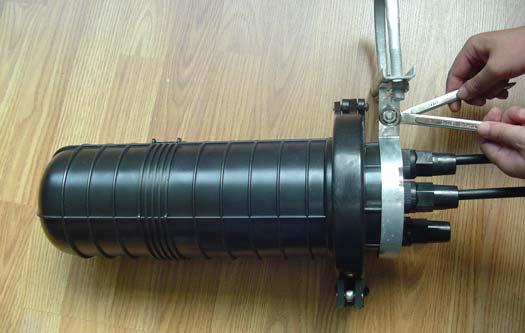

The GTJA208-1 Closure allows two cables in and two cables out. It accommodates the splicing and branching of the cable which is used in aerial-hanger, wall-mounting or direct buried. The Closure is an operable box which is made from high-quality PC. The closure and the foundation plate are sealed with Silicon Gum Material which fixes tightly by hoop. And the sealing of cables also uses Silicon Gum Material.
The Closure can be opened and used again, no need to change the sealing materials after it be sealed.
Application: Aerial-hanger, Wall-mounting, Direct Buried
Specification
Item |
GTJA208-1 |
Dimension (mm) | Φ250x470 |
Weight (Kg) | 4.4 |
Cable Diameter (mm) | Φ7-Φ20 |
Cables Entry & Exit | 2 & 2 |
Max Capacity of Cores Per Splice Tray | 12 (Single) / 16 (Single) / 72 (Ribbon) |
Max Capacity of Splice Trays/ Closure | 6 |
Max Capacity of Cores | Single: 72(12 Cores/Tray) / 96
(12Cores/tray), Ribbon: 216 (6 Cores) / 432(12Cores) |
Sealing Structure of Cable Entry Port | Silicon Gum Material |
Sealing Structure | Silicon Gum Material |
Accessories
Icon | Details | Icon | Details |
Name:Splice Protective Tube Type: FPS-01 Qty: According to the fiber cores |
![]() |
Name: Hanging Hook Type: Aerial-hanging or Wall-mounting Qty: 1 Set |
|
![]() |
Name: Cables Ties Type: 3x100(mm) Qty: 4xSplice Tray |
![]() |
Name: Inner Hexagon Spanner Type: M4 Qty: 1 PCS |
![]() |
Name: Sealing Washer Type: Silicon Rubber Material Qty: 4 PCS |
![]() |
Name: Inner Hexagon Spanner Type: M6 Qty: 1 PCS |
![]() |
Name: Plugs Type: Qty: 2 PCS |
Name: Marking Note Type: Non-dry Glue Qty: 4xFiber Core |
Storage
Storage Temperature Range: -40?C ~ +60?C |
