TSO | Variable Attenuator

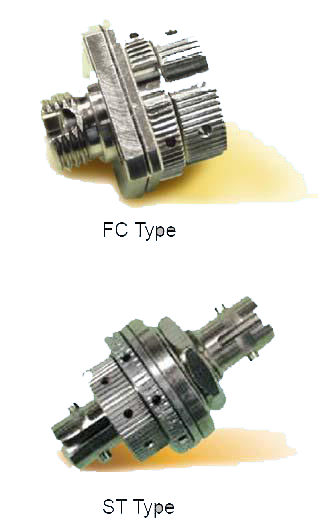

BULKHEAD-TYPE VARIABLE ATTENUATOR

The Bulkhead-type variable attenuator can be installed at the distribution panels or connecting two patch cords to become in-line attenuator application. By fine tuning the air gap width, the user can easily adjust the attenuation value by hand when using in conjunction with power meter.

Features:

Easy to adjust by hand Locking Feature

Applications:

Distribution Panels In-line Attenuator

Specifications :

	Model	BVAT-ST	BVAT-FC	BVAT-FA
Items
Attenuation Range (dB)		15	20	20
Material Split Sleeve Body		Bronze Nickel plated Brass	Ceramic Nickel plated Brass	Ceramic Nickel plated Brass

Ordering Information :

Part #	Description
BVAT-FC	Bulkhead-type Optical Variable FC/UPC SM Attenuator (0-20dB)
BVAT-FA	Bulkhead-type Optical Variable FC/APC SM Attenuator (0-20dB)
BVAT-ST	Bulkhead-type Optical Variable ST MM Attenuator (0-15dB)
