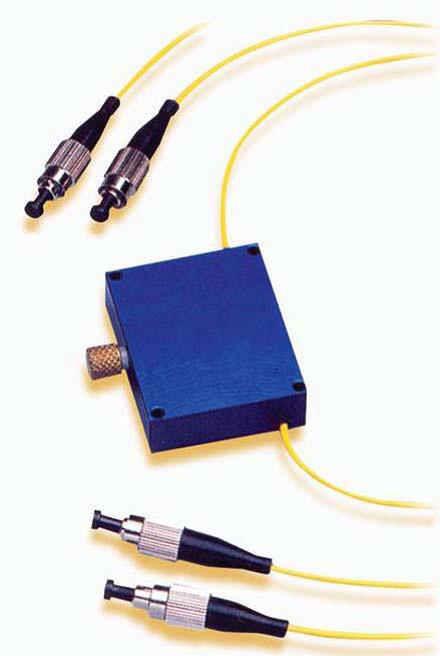

MANUAL VARIABLE OPTICAL ATTENUATOR
By turning the high precision screw, attenuation can be set from 0dB to 30dB. Its compact design is excellent for mounting on panel. Specific type of connector can be built on each end. |
|
Specifications :
Connector Type | SC,FC,ST,MU,LC |
Attenuator Vriable Rang | 30dB (@1310nm & 1550nm) |
Return Loss | UPC: >55dB APC: >65dB |
Resolution | 0.5dB |
Operation Temperature | -15°C to 60°C |
Storge Temperature | -40°C to 70°C |

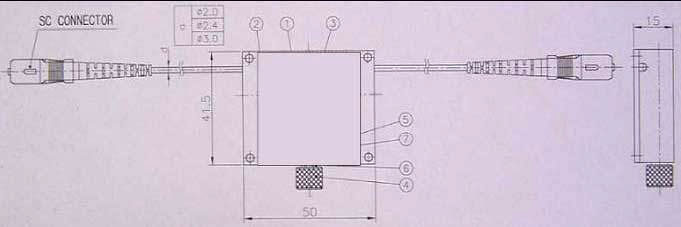

Technical Drawing:
- Body
- Cover
- Guide Pin
- Bolt
- Nut
- Washer
- Washer

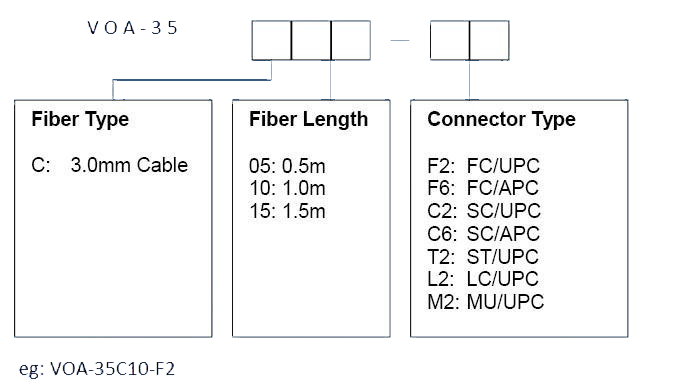

Ordering Information:
![](../../../images/products image/attenuator image/manual variable attenuator image/3.png)
